Case study · Automation

Electrical quotation builder with comparison logic

Raj Yash Electricals · Custom Excel + VBA · 2025

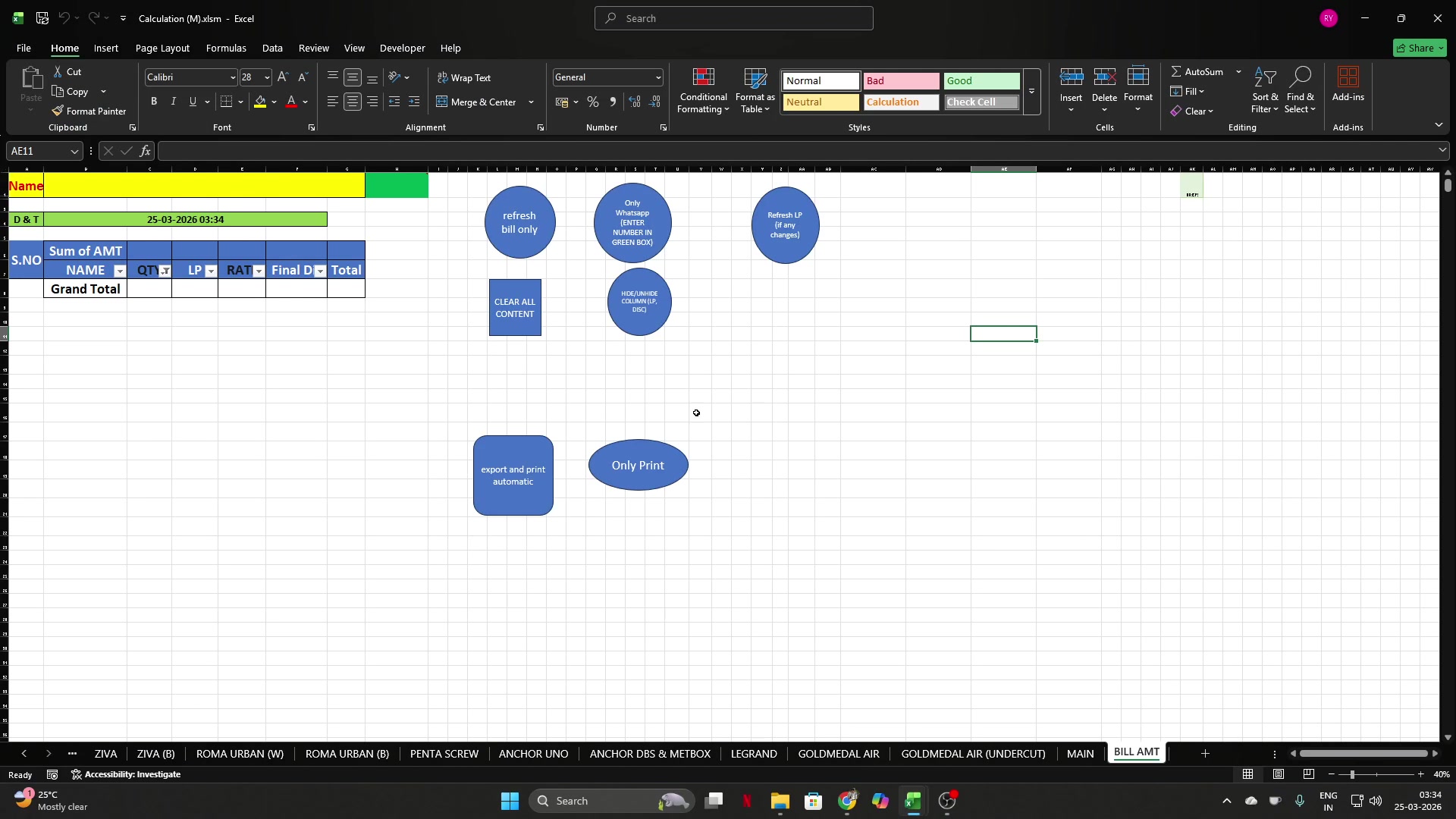

Quotation builder dashboard with macro buttons for refresh, WhatsApp, export, and print

30→2

Min per quote

13+

Brand sheets

500+

SKUs covered

1-click

PDF + WhatsApp

The problem

Preparing customer quotations meant cross-referencing hundreds of SKUs across a dozen brands (Anchor, Roma, Ziva, Legrand, Goldmedal, Penta…), looking up MRPs, calculating discounts per category, and rebuilding the same Excel sheet for every enquiry. A typical quote took 30+ minutes and was easy to get wrong — wrong MRP, wrong discount slab, wrong totals.

The solution

A macro-driven Excel workbook that turns the pricing logic of an electrical wholesaler into a one-screen tool.

One sheet per brand — Ziva, Roma Urban (W/B), Roma Plus, Anchor (Penta/Uno/DBS), Legrand, Goldmedal, and more — each pre-loaded with the latest list prices
Live calculation — type a quantity, the rate (= LP × discount slab) and amount fill in automatically
Per-brand discount slabs — three discount columns per brand so the salesperson picks the right tier without doing math
Refresh LP button pulls the latest pricing from the master pricelist when manufacturers change rates
BILL AMT summary consolidates picks across all brands into one final quote
One-click PDF + Excel export at A5 landscape, saved to a date-indexed OneDrive folder for easy retrieval
One-click WhatsApp — type a number into the green box, the macro sends the rendered quote directly

The outcome

Quote prep dropped from 30 min to ~2 min — over 90% reduction in time per customer
Pricing errors eliminated — the master pricelist is the single source of truth, no more wrong MRPs
Customer turnaround within minutes instead of hours, often while the customer is still on WhatsApp
Every quote saved automatically in OneDrive (PDF + Excel snapshot) for re-quoting, audit, or follow-up

Walkthrough

Six screens from the live tool — per-brand sheet, calculation in action, multi-brand summary, export confirmation, and the auto-saved output folder.

Per-brand sheetEach brand has its own sheet — pre-loaded list prices, three discount tiers, three categories.

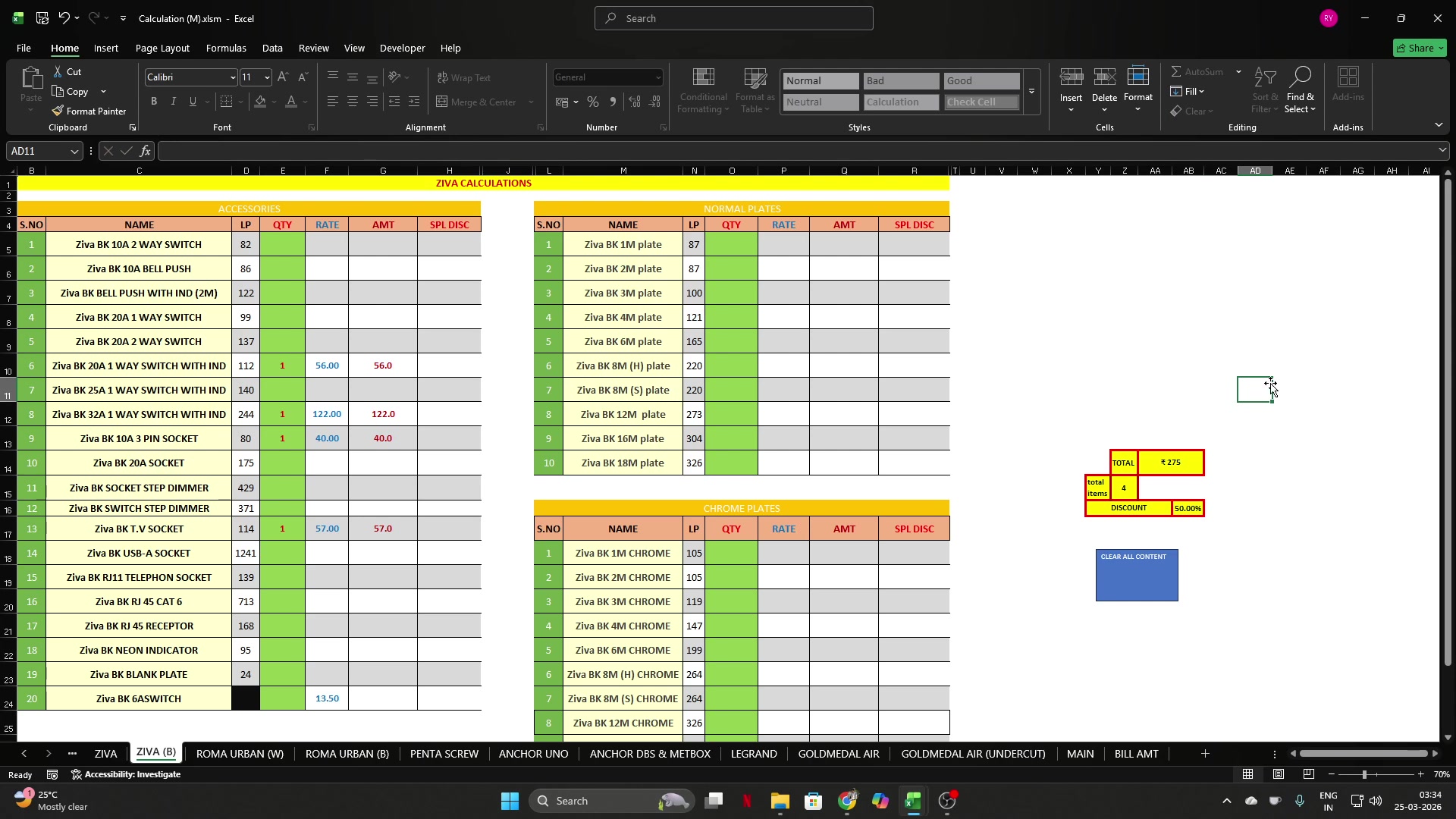

Same Ziva sheet with quantities entered showing live RATE and AMT calculations — **Live calculation**Enter QTY, RATE and AMT fill themselves. TOTAL panel updates in real time.

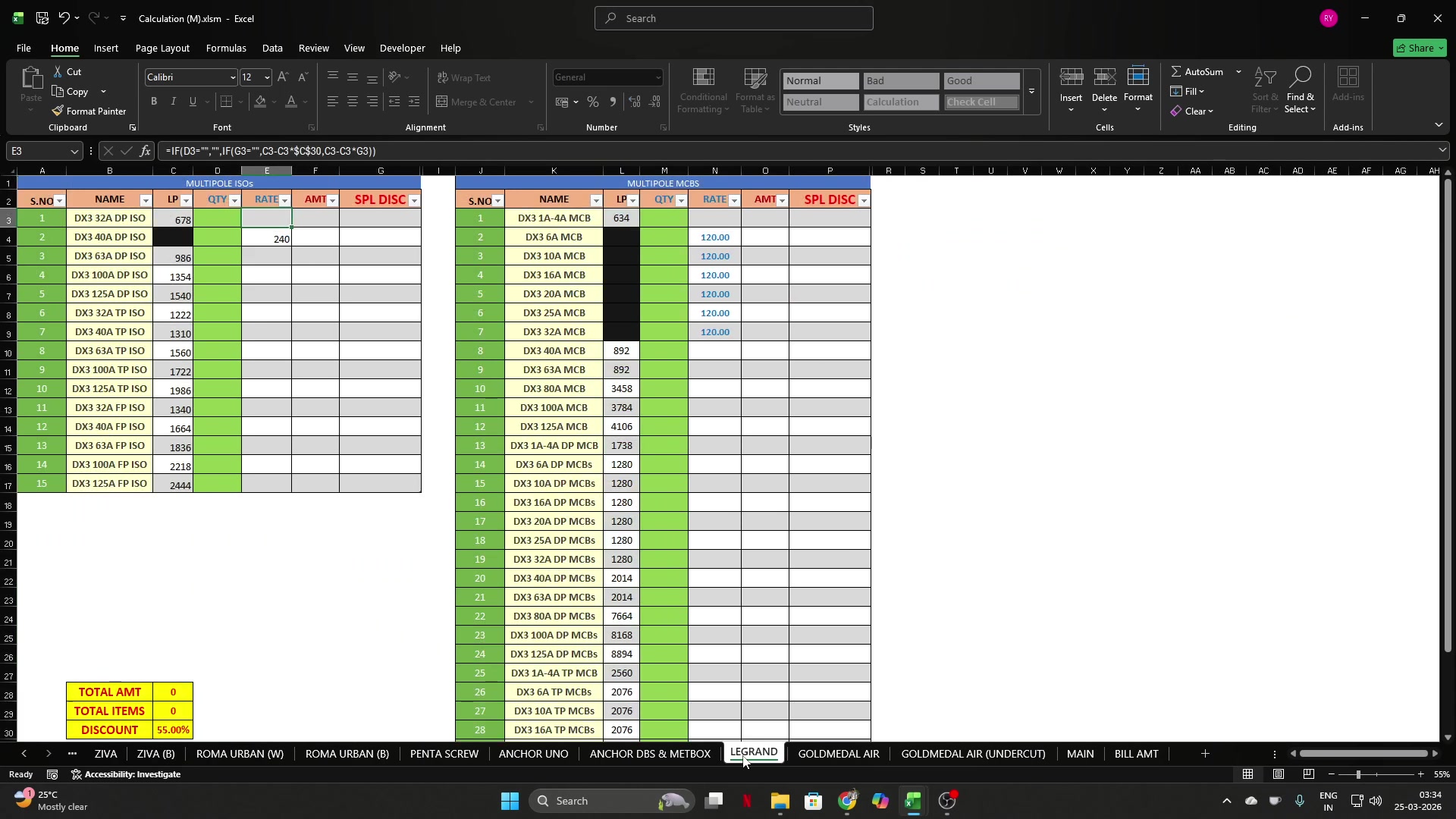

Multi-brandSame UI across 13+ brands — Legrand, Anchor, Goldmedal, Roma, etc.

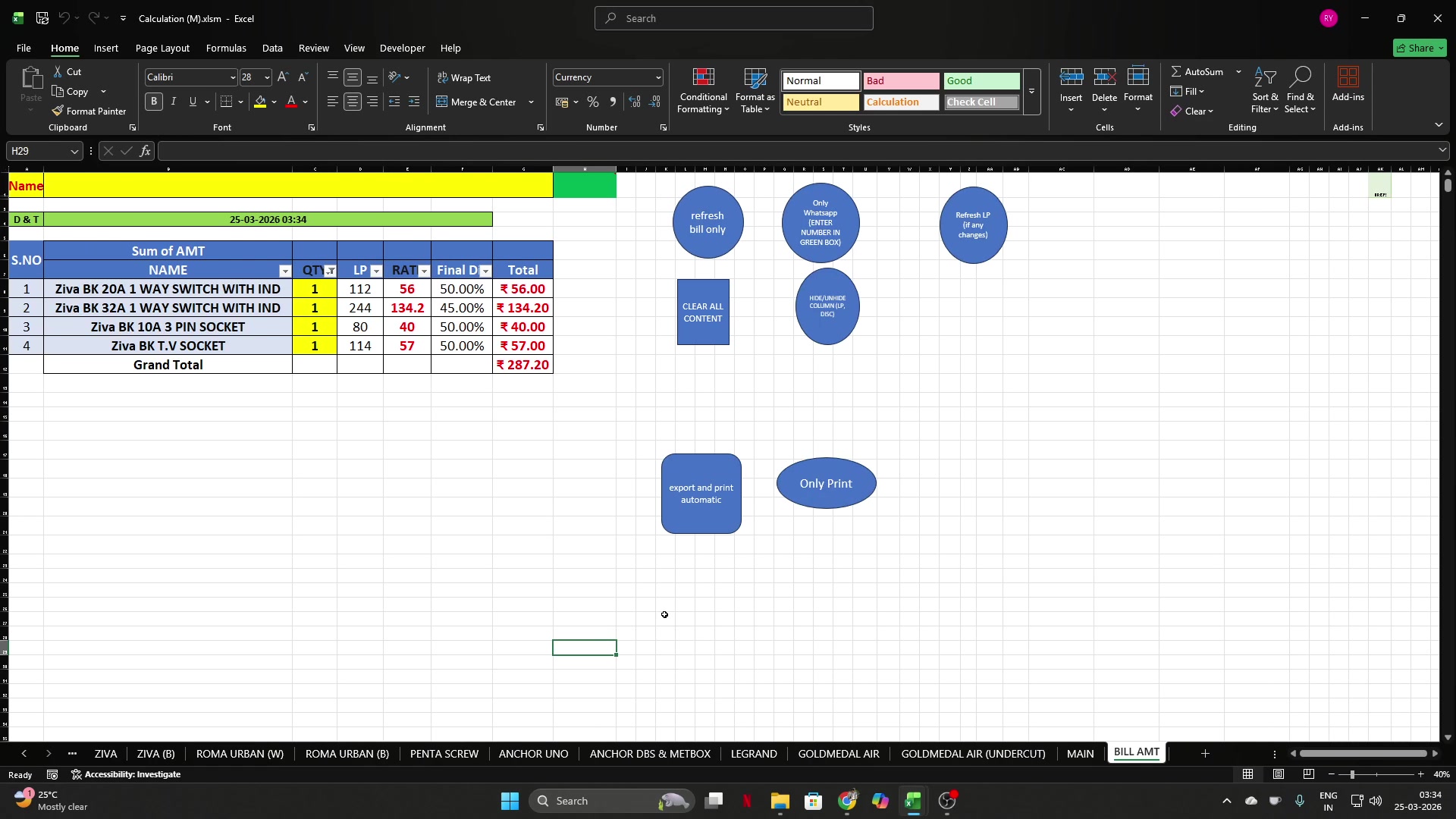

Bill amount summary consolidating selected items across brands with grand total — **Bill summary**Items picked from any brand consolidate into one quote with running total.

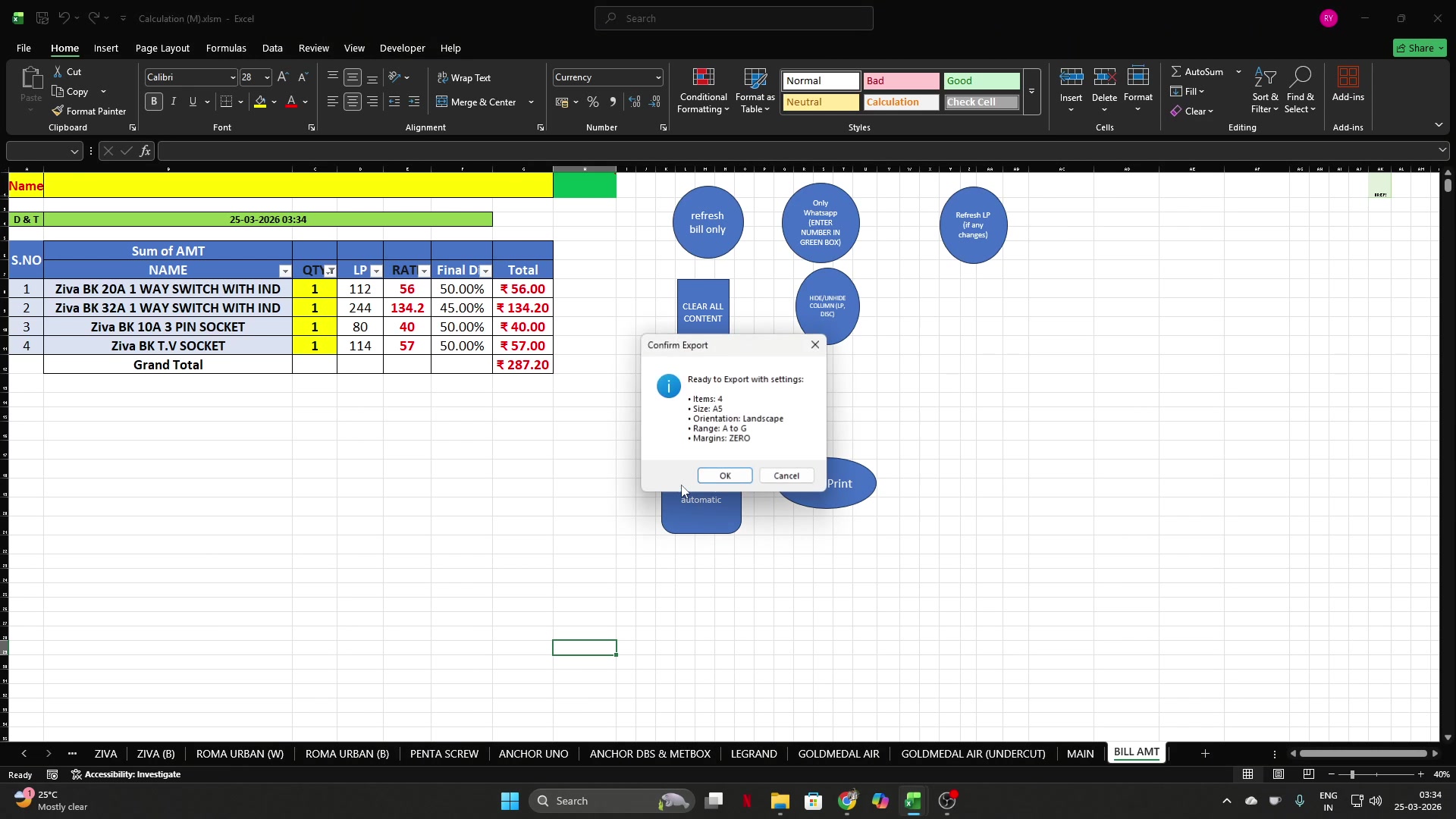

Export confirmation dialog showing 4 items at A5 landscape with zero margins — **One-click export**Confirms settings then renders PDF + Excel automatically.

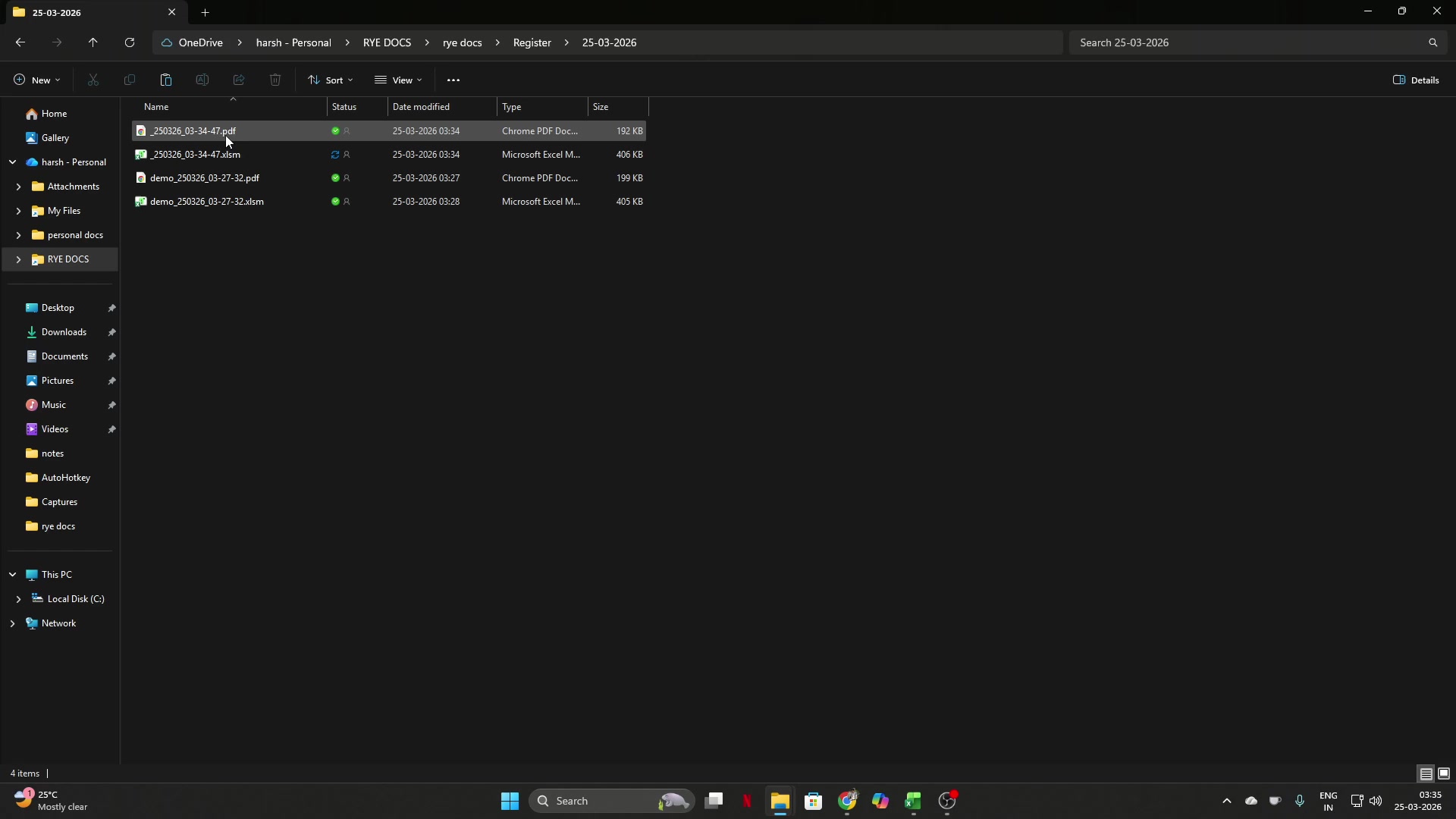

OneDrive folder showing date-indexed PDF and Excel quote files — **Auto-archived**Each quote saved in date-indexed OneDrive folders — searchable forever.

Tech stack

ExcelVBA macrosOneDrive syncWhatsApp Web automationPDF export
